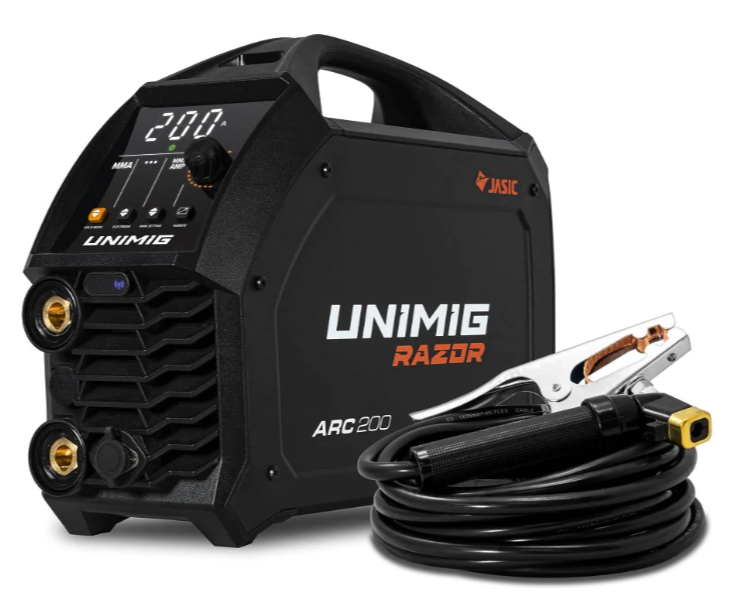

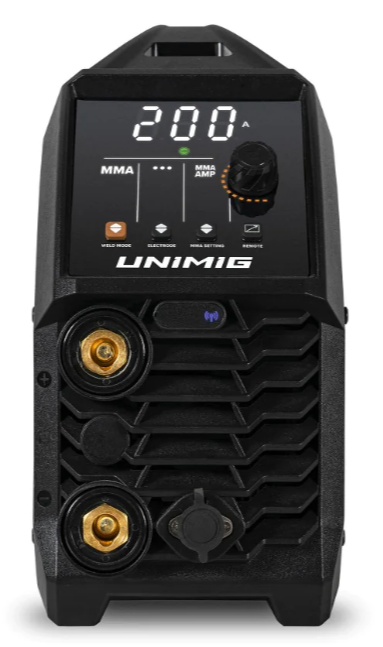

Unimig U13003K RAZOR ARC 200 PFC Welder
$949.00
5
People watching this product now!
Delivery & Returns
Orders are processed within 1–2 business days and delivered within 3–10 business days within the United States. Orders over $150 ship free. Unused items in original packaging can be returned within 14 days of delivery. See our FAQ for details.
Warranty
All products are covered by the manufacturer's standard warranty. Coverage and length vary by brand. For warranty questions, contact us at support@boldtoolsupply.com and we'll help you with the claim. See our FAQ for details.
Description
Features:
- HD Backlit Interface – This next generation interface panel is bright and easy to read in any environment.
- Power Factor Correction (PFC) – PFC gives you maximum electrical efficiency. It automatically compensates for any voltage fluctuation, and PFC is also designed to be generator friendly.
- Advanced MMA Features – The RAZOR ARC 200 PFC features Anti-Stick technology, as well as adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.
- DC Lift Arc TIG – Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.
- Optional Remote Control – Upgrade your machine with a handy remote control. Both a wired and wireless controller are available.
- Smart Fan – Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
- Lightweight & Portable
- Weighing just 7.6kg, the RAZOR ARC 200 PFC is ready to go anywhere you need it.
Specifications:
- Primary Input Voltage 240V Single Phase
- Supply Plug 15 AMP
- Ieff (A) 14.9
- Rated Output 20A/20.8V – 200A/28V
- No Load Voltage (V) 78
- Protection Class IP23S
- Insulation Class H
- Minimum Generator (kVA) 9.0
- Dinse Connector 35/50
- Standard AS/NZ60974-1
- MMA Weld Material type Mild Steel, Stainless Steel, Cast Iron
- TIG Weld Material type Mild Steel, Stainless Steel, Copper, Silicon Bronze
- Warranty (Years) 5
STICK Specifications
- STICK Welding Current Range: 20-200A
- STICK Duty Cycle @ 40°C:
- 25% @ 200A
- 60% @ 129A
- 100% @ 100A
- STICK Electrode Range: 2.5-4.0mm (0.10-0.16 in)
- STICK Welding Thickness Range: 2-12mm (0.08-0.47 in)
TIG Specifications
- TIG Function Type: DC Lift Arc
- TIG Welding Current Range: 10-200A
- TIG Duty Cycle @ 40°C:
- 25% @ 200A
- 60% @ 129A
- 100% @ 100A
- TIG Welding Thickness Range: 1-8mm (0.04-0.31 in)
Size & Weight
- Dimensions (mm): 413×150×311 mm (5.91 x 12.24 in)
- Weight (kg): 7.6kg
