Sugatsune HES3D-E190 3-Way Adjustable Concealed Hinge
$135.00
3
People watching this product now!
Delivery & Returns
We offer free next working day delivery on orders over 50 $, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page.
Warranty
All of our products come with a standard 1 year manufacturers warranty, however if you would like to discuss extending this warranty, please contact our customer service team email bartu@boldtoolsupply.com. For further warranty information from this specific manufacturer, visit our warranty page.
Description

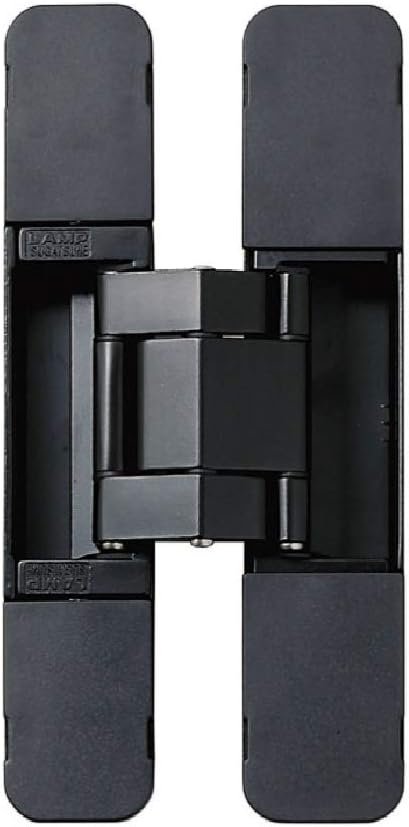

Sugatsune HES3D-E190 Concelaed Hinge – Allows installing hinged door flush with the wall, resulting the door with a seamless look. HES3D-E190 is the ultimate invisible door hinge for Flush-to-the-wall doors.
Adjustable invisible door hinge is fire rated up to 3 hours – UL Classified
3 WAY adjustment function allows vertical, horizontal, and depth adjustment after hinge installation.
Easy installation and after-installation adjustment.
Successfully passed 300,000 open/close private cycle tests.
Supplied with steel flat head screw.
Cover hides all screw heads for clean appearance.
Door weight : Max. 100kg (220lbs)/2pcs, 125kg (275lbs)/3pcs
Door Thickness : Min. 38mm(1-1/2″)
Max. Door Size : H 2400mm (94-1/2″) × W 900mm (35-7/16″)

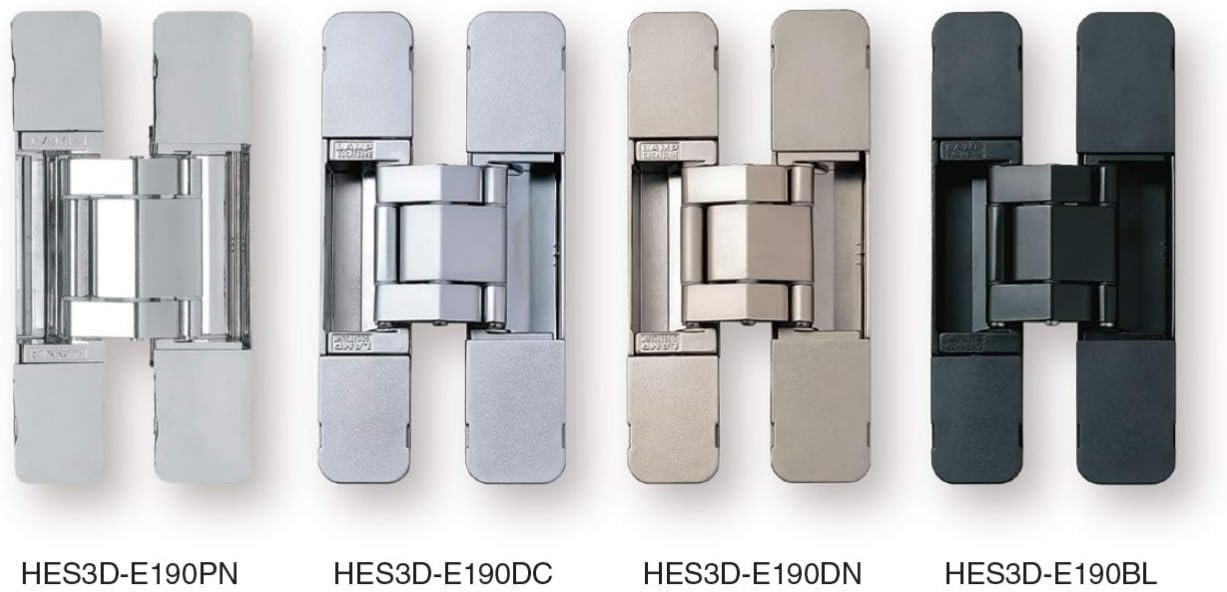

Finish: Dull Nickel(DN), Black(BL, Dull Chrome(DC), Polished Nickel(PN)
Optional HES3D-E190BKT mounting brackets available for installation onto steel doors and frames.
3 WAY adjustment function allows vertical, horizontal, and depth adjustment after hinge installation.
Easy installation and after-installation adjustment.
Door weight : Max. 100kg (2Door Thickness : Min. 38mm(1-1/2″)20lbs)/2pcs, 125kg (275lbs)/3pcs
Max. Door Size : H 2400mm (94-1/2″) × W 900mm (35-7/16″)
